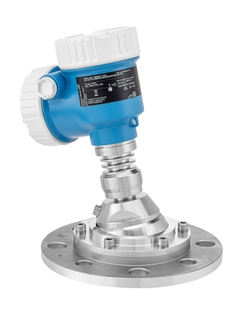

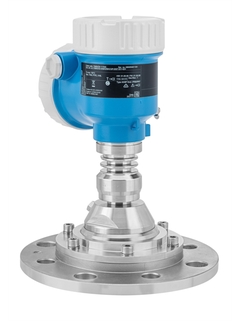

Micropilot FMR67B – product picture

Micropilot FMR67B – 80 GHz radar sensor

Highest performance for demanding applications

FMR67B
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-

Specs at a glance

  • Accuracy

    +/- 3 mm (0.12 in)

  • Process temperature

    -196 … +450 °C (-321 … +842 °F)

  • Process pressure / max. overpressure limit

    Vacuum...160 bar (2320 psi)

  • Max. measurement distance

    125 m (410 ft)

  • Main wetted parts

    Horn antenna: 316L / 1.4404, Al2O3 (ceramic),

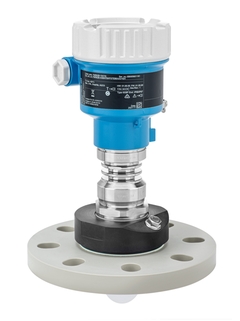

    graphite Flush / Drip-off antenna: PTFE

Field of application

Micropilot FMR67B is part of the new generation of 80 GHz radar sensors. It is suitable for continuous non-contact level measurement in demanding solid applications – even with extreme process temperatures. Wizards guide users through commissioning, proof tests and verification of the devices and thus guarantee a simple operation. The narrow beam angle is suitable for measurements in narrow silos. Heartbeat Technology identifies anomalies for increased safety and productivity.

The Micropilot FMR67B is suitable for free space applications up to 125m and offers high beam focusing for vessels with many internal fittings.

  • Process connections: Flanges

  • Temperature: –40 to +450 °C (-40 to +842° F)

  • Pressure: –1 to +160 bar (-14.5 to +2320.6 psi)

  • Maximum measuring range: 125 m (1410 ft)

  • Accuracy: ±3 mm (0.12 in)

  • W-Band: 80 GHz

  • International explosion protection certificates, SIL, 5- or 10-point factory calibration certificate

Benefits

  • Easy handling through intuitive operation and wizards, for commissioning and verification

  • Increased productivity thanks to process monitoring, verification, and diagnostics in the running process with Heartbeat Technology

  • Safety by Design: Device development according to IEC 61508

  • Simple device integration into asset management systems through digital communication

  • Highly reliable measurement thanks to narrow beam angle and intelligent evaluation even in vessels with interfering installations
