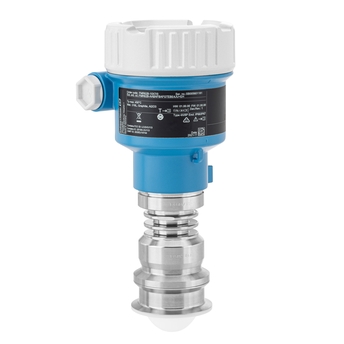

Micropilot FMR63B – product picture

Micropilot FMR63B – 80 GHz radar sensor

More simplicity with the specialist for hygienic applications

FMR63B
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-

Specs at a glance

  • Accuracy

    +/-1 mm (0.04 in)

  • Process temperature

    -40 °C … +200 °C (-40 °F … +392 °F)

  • Process pressure / max. overpressure limit

    Vacuum...25 bar (363 psi)

  • Max. measurement distance

    80 m (262 ft)

  • Main wetted parts

    PEEK or PTFE

Field of application

Micropilot FMR63B is part of the new generation of 80 GHz radar sensors. Thanks to hygienic process connections it is suitable for continuous non-contact level measurement in hygienic applications. Wizards guide users through commissioning, proof tests and verification of the devices and thus guarantee a simple operation. Heartbeat Technology offers verification and monitoring functions to identify anomalies for more safety and increased productivity.

The Micropilot FMR63B is for free space applications up to 80m and offers high beam focusing for vessels with many internal fittings.

  • Process connections: M24 adapters and hygienic process connections

  • Temperature: –40 to +200 °C (-40 to 392° F)

  • Pressure: –1 bis +25 bar (-14.5 to +362.6 psi)

  • Maximum measuring range: 80 m (164 ft)

  • Accuracy: ±1 mm (0.04 in)

  • W-band: 80 GHz

  • International explosion protection certificates, overfill prevention WHG, SIL, 5- or 10-point factory calibration certificate

Benefits

  • Easy handling through intuitive operation and wizards, for commissioning and verification

  • Increased productivity thanks to process monitoring, verification and diagnostics in the running process with Heartbeat Technology

  • Safety by design: Device development according to IEC 61508

  • Simple Display of device status – A change in the backlighting from green to red highlights errors immediately

  • Simple device integration into asset management systems through digital communication
