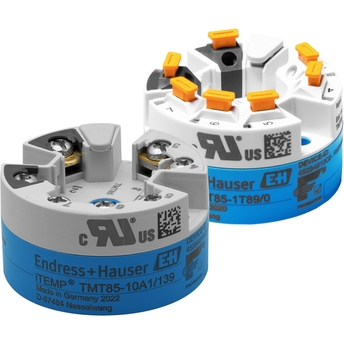

Product picture temperature transmitter tmt85

iTEMP TMT85 temperature transmitter

FOUNDATION Fieldbus™ temperature transmitter as head or field device with two universal sensor inputs suitable for use in hazardous areas

TMT85
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
iTEMP TMT85 Temperature head transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser
iTEMP TMT85 Temperature head transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser
iTEMP TMT85 Temperature head transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser
iTEMP TMT85 Temperature head transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    (Pt100) <= 0,1 K
    (Pt100) <= 0,18 °F

Field of application

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers digital converted signals from RTD and TC sensors, it also transfers resistance and voltage signals using FOUNDATION Fieldbus™ communication. High measurement point availability by means of sensor monitoring functions and device hardware fault recognition. Optimization of the measurement accuracy by sensor-transmitter matching.

  • 2 universal input channels and FF™ protocol for the conversion of input signals into digital output signals

  • The device stands out due to signal reliability, long-term stability, high precision and advanced diagnostics (important in critical processes)

  • For the highest level of safety, availability and risk reduction

  • Installation in flat-face terminal head as per DIN EN 50446

  • Optional installation in field housings even for use in Ex d areas - with mounting brackets for wall or pipe mounting

Benefits

  • Easy and standardized communication via FOUNDATION Fieldbus™ H1

  • Straightforward design of measuring points in Ex-areas through FISCO/FNICO conformity in accordance with IEC 600079-27

  • Safe operation in hazardous areas thanks to international approvals such as FM IS, NI; CSA IS, NI; ATEX Ex ia, Ex nA for intrinsically safe installation in zone 1 and zone 2

  • High accuracy through sensor-transmitter matching

  • Reliable operation with sensor monitoring and device hardware fault recognition

  • Several mounting versions and sensor connection combinations

  • Rapid no-tools wiring due to optional spring terminal technology

Extended selection

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

FLEX: Extended ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
