Turbidity assembly
Cleanfit CUA451

Turbidity assembly Cleanfit CUA451 ©Endress+Hauser

Retractable assembly for water, wastewater and utilities

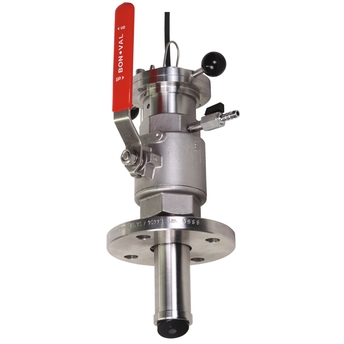

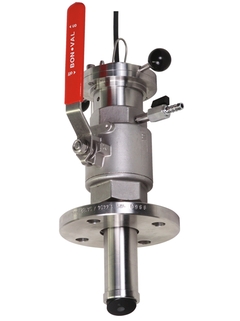

Cleanfit CUA451 is a retractable assembly for all fields of turbidity and suspended solids measurements. It is equipped with a stop bolt, O-ring seals and a ball valve, enabling complete separation of process and sensor compartment. This allows you to access the sensor without interrupting the process or emptying the pipe or tank. Better still, benefit from increased process and operational safety and significantly reduced maintenance effort across the whole measuring point.

  • Benefits

    • One assembly for all applications: The 'one for all' principle optimizes stockholding, speeds up project handling and simplifies life cycle management.

    • Easy and safe maintenance: Sensor service and cleaning without process interruption.

    • Robust design:...

  • Field of application

    The Cleanfit CUA451 is a retractable turbidity assembly for:

    • Wastewater treatment plants:
      - Sludge in the recirculation line
      - Sludge centrifuge monitoring
      - Primary sludge and sludge treatment

    • Drinking and process water:
      - Sludge treatment in water...

Features and specifications

Back

Details

  • Measuring principle

    Single beam scattered light

  • Application

    - Primary sludge and return activated sludge in sewage treatment plants.- Sludge centrifuge monitoring- Filter monitoring and filter backwash- Monitoring of phase break processes.- Cooling water monitoring.

  • Installation

    Manual retractable holder with ball valve for pipe or bypass installations.

  • Characteristic

    - Cleaning possible in every operation mode due to rinse water connection.- Sensor monitoring and calibration without process interrupt.

  • Design

    Manual retractable holder with rinse water connections and external cleaning system. Rinse water connection can be used as sealing water inlet.

  • Material

    Holder : stainless steel 1.4404Sealing : Viton

  • Dimension

    Immersion depth : 170mm or 270mm
    (6.63 - 10.53inch)

  • Process temperature

    max. 80°C (176°F)

  • Process pressure

    For manual assembly operation : max 2bar (29psi)
    Medium pressure : max. 10bar (145psi)

  • Connection

    Process connections : Flange DN50/PN16; ASME 2"/150lbs; G2";Rinse water connections: 2x G1/8; Air supply: 9mm tubing.

Documents / Manuals / Software

  • Technical Information CUA 451

    Manually operated stainless steel assembly with ball valve for turbidity sensors

    Technical Information (TI)
  • Operating Instructions Cleanfit CUA451

    Manually operated stainless steel assembly with ball valve for turbidity sensors

    Operating Instruction (BA)
  • Operating Instructions OUA451

    Retractable Process Assembly

    Operating Instruction (BA)
  • SD CleanFit Servicekits / Spare part kits

    CleanFit Wechselarmaturen / Retractable assemblies

    Special Documentation (SD)
  • Cleanfit CUA451

    Prozess-Wechselarmatur für Trübungssensoren zur In-Line-Messung in Rohrleitungen zum Sensorein- und Ausbau unter Prozessbedingungenmit Arretierung

    Tender Text
    08/12
    German
  • CleanFit

    Product Code: CUA451- Declaration Number: HE_01079_01.18 Manufacturer Specification: PED

    Manufacturer Declaration
    German , English
  • CleanFit, CleanFit H, CleanFit P, FlowFit W

    Product Code: CUA451-, CPA875-, CPA871-, CPA475-, CPA474-, CPA473-, CPA472D-, CPA472-, CPA471-, CPA450-, COA451-, CCA250- Region/Country: Russia (TR CU) Approval Agency: EAC Approval Number: TC № RU D-DE.AL32.B.02544

    Miscellaneous
    Russian

Accessories / Spare parts

Nr
Order code
Specification
  • 22
  • 14
  • 5
  • 12
    • Nr 12 Order code 51513163

      Kit COA/CUA451:Sensor holder CUS41 short

      For Sensors CUS41, CUS51D, COS31, COS61, COS61D

  • 3
    • Nr 3 Order code 51513164

      Kit COA/CUA451: Sensor holder CUS41 Long

      For Sensors CUS41, CUS51D, COS31, COS61, COS61D

  • 13
    • Nr 13 Order code 51513166

      Kit COA/CUA451:Sensor holder CUS65 short

      For Sensors CUS65, COS41, COS51D

  • 4
    • Nr 4 Order code 51513167

      Kit COA/CUA451:Sensor holder CUS65 Long

      For Sensors CUS65, COS41, COS51D

  • 21
  • 20
  • 2
  • 6, 7,9,11,15
    • Nr 6, 7,9,11,15 Order code 51513169

      Kit CxA451: Set of small components

      includes 5 bracket, 10 Securing screws 2 Bayonet lock, 15 Grub screw 1 Greace nipple

  • 8,15,16,17,18
  • 8,15,16,17
  • 10
    • Order code 51511613

      Welding adapter R2" 1.4404

    • Order code 50080249

      welded fitting 1.4571 DN50/ANSI

      For retractable holder COA 461/CUA 461/ CPA451 / CUA451 / COA451. connection DN50 and ANSI 2". (Gasket to be provided by customer)

    • Order code 50080250

      Welded fitting PVC, retractable holder

      connection DN50 and ANSI 2". (Gasket to be provided by customer)

    • Order code 50080251

      Welded fitting PP f.retractable holder

      connection DN50 and ANSI 2 inch. (Gasket to be provided by customer)

    • Order code 51500912

      Welding socket for spray cleaning VA

      for automatic spray cleaning of sensors CUS 31/41, CPF81/82 in tubes or tanks welding socket DN 65 with removeable spray jet and flange DN 50 / ANSI 2" for connection of CUA 461 / CUA 120-B / CPA451 / CUA451 / COA451 Material: SS / Viton Connection spray tube: Thread R 1/4" Pressure / temperature: 6 bar / 80oC
