Digital non-glass pH sensor
Ceramax CPS341D

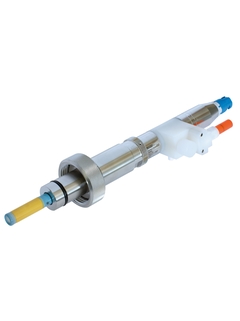

Ceramax CPS341D - Memosens enamel sensor for tough process conditions ©Endress+Hauser

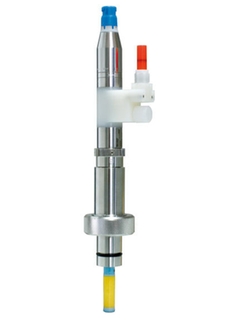

Ceramax CPS341D - Unbreakable, perfectly suited for food applications ©Endress+Hauser

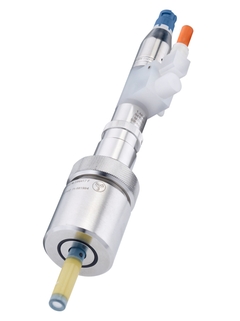

Ceramax CPS341D - Long-term stable over many years ©Endress+Hauser

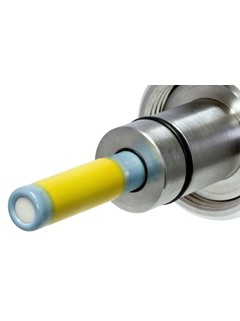

Ceramax CPS341D - Detail view of pH-sensitive enamel coating ©Endress+Hauser

The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens enamel electrode for food and life sciences industries

Ceramax CPS341D is the long runner for hygienic applications in food and life sciences industries. The sensor guarantees long-term stability and lowest maintenance wherever it is applied. Thanks to Memosens digital sensor technology, CPS341D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.

Quick selection

Choose from our suggested options
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>


Individual configuration

Continue your selection from all possible options
  • Benefits

    • Long-term stability over many years

    • Hygienic design: Suitable for cleaning in place (CIP) and sterilization in place (SIP)

    • High mechanical stability due to pH-sensitive enamel on a steel carrier

    • Insensitive to soiling thanks to large pH measuring surface

    • ...

  • Field of application

    • Food production, also highly pasty media

    • Beverage production and filling

    • Life sciences:
      - Water treatment
      - Active ingredient production
      - Active ingredient preparation
      - Biotechnology

Features and specifications



  • Measuring principle

    Glass electrode

  • Application

    Food production, beverage production, quality control, pharmaceutical industry, biotechnology

  • Characteristic

    Electrode with pH sensitive enamel and digital Memosens technology
    Meets highest demands of measuring accuracy, pressure, temperature, sterility and durability

  • Measurement range

    pH -2 to 14

  • Measuring principle

    Ground diaphragm, liquid KCl-filled reference

  • Design

    Only one shaft length, different hygienic process connectors
    Integrated temperature sensor

  • Material

    pH sensitive enamel on a steel carrier

  • Dimension

    Diameter: 12 mm (0.47 inch)
    Shaft length: 120 mm (4.72 inch)

  • Process temperature

    0 to 140 °C
    (32 to 280 °F)

  • Process pressure

    0 to 7 bar abs
    (0 to 101.5 psi)

  • Temperature sensor

    NTC 30KΩ

  • Connection

    Contactless, inductive, digital connection head with Memosens technology

Documents / Manuals / Software

Accessories / Spare parts

Order code
