Compact conductivity device

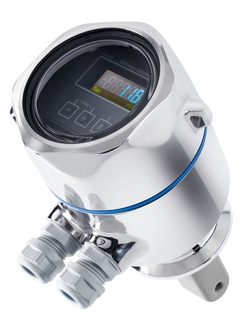

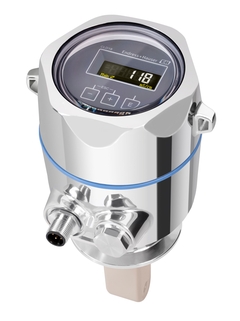

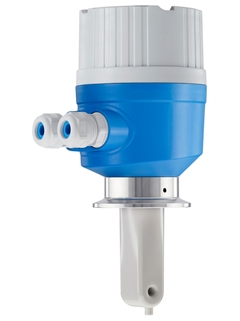

Smartec CLD18

The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

Toroidal conductivity measuring system for hygienic applications

Smartec CLD18 is the cost-effective solution for all applications in beverage plants where small tubes are used and where the toroidal measurement is used as a switch function. The combination of a transmitter and a sensor is interference-free, easy-to-use and features a hygienic design that protects your products and processes from contamination. Smartec CLD18 ensures the Overall Equipment Effectiveness (OEE) of your plant thanks to fast and reliable CIP and phase separation measurements.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue.

Individual configuration

Continue your selection from all possible options

Configure

Benefits
Unique hygienic design avoids contamination
3-A approval
Compliant with EG 2023/2006 and 1935/2004
Suitable for cleaning-in-place (CIP)
Compact design permits installation in small tubes without restricting the flow

Field of application
The hygienic Smartec CLD18 measures toroidal conductivity in beverage applications:

Control of CIP processes in the return channel

Concentration control in remaking of CIP cleaning agents

Product monitoring in pipe systems, bottling plants

Beer - Push...

Show more
The hygienic Smartec CLD18 measures toroidal conductivity in beverage applications:

Control of CIP processes in the return channel

Concentration control in remaking of CIP cleaning agents

Product monitoring in pipe systems, bottling plants

Beer - Push water interphase

Beer - Water cut for brewing lines

Leakage monitoring

It features the following protocols and interfaces:

0/4...20mA

Show less

Features and specifications

Back

Details

Measuring principle

Inductive
Application

Food and beverage industries
Characteristic

Specifically intended for use in beverage industry applications and especially suitable for:
Phase separation, control of CIP, concentration control, product monitoring, leakage monitoring
Measurement range

200 µS/cm to 1000 mS/cm
Cell constant k: 11.0 1/cm
Measuring principle

Inductive conductivity measurement
Design

Hygienic design with FDA certified virgin PEEK
Material

Sensor: PEEK
Process connection 1.4435 (316L)
Seal: EPDM
Process temperature

-10 °C to 110 °C (14 °F to 230 °F)
Sterilization: max. 130 °C at 6 bar abs up to 60 min
(Max. 266 °F at 87 psi up to 60 min)
Process pressure

13 bar abs up to 50 °C (188.5 psi up to 122 °F)

7.75 bar abs at 110 °C (112 psi at 230 °F)

6.0 bar abs at 130 °C for max. 60 minutes
(87 psi at 266 °F for max. 60 minutes)
Temperature sensor

Pt 1000 (class B)
Connection

Dairy pipe, aseptic-fitting DN40 and DN50, Clamp 2"
ISO 2852, SMS-2", Varivent N DN 40-125
Thread G1 1/2 SS, G1 1/2 PVC , Union nut 2 1/4 Inch PVC
Ingres protection

IP69
Output

Conductivity and temperature.0/4-20 mA
Additional certifications

3A, FDA, EHEDG
EC Regulation No. 1935/2004

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Smartec CLD18 Technical Information
Conductivity measuring system

Technical Information (TI)
Smartec CLD18
Conductivity measuring system

Operating Instruction (BA)
kurier 01-2014
Kundenmagazin: Ihr Partner für mehr Anlagensicherheit

Customer Magazine (CM)

01/14

German
Focus on the food industry
The best product fit for your
applications

Competence Brochure (CP)

01/16

English
Compact, robust, excellent
Toroidal conductivity system Smartec CLD18 – designed for the beverage
industry

Innovations (IN)

12/13

English
Kompakt und effizient
Leitfähigkeitssystem Smartec CLD18 sorgt für Zuverlässigkeit in der
Getränkeindustrie

Innovations (IN)

12/13

German
Compact, robust, excellent
Toroidal conductivity system Smartec CLD18 – designed for the beverage
industry

Innovations (IN)

12/13

English
DTM Single, Smartec_CI_CLD18_CDI_FW_2_00_zz, 13.07.2019 (Analysis, Smartec, 0x0025)
Common Device Interface,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.2.0.0

Language neutral
DTM Single, Smartec_CI_CLD18_CDI_FW_1_00_zz, 13.07.2019 (Analysis, Smartec, 0x0025)
Common Device Interface,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.0.0.2

Language neutral
ComDTM Single, CDI_CommDTM, 21.01.2019
Common Device Interface,

DeviceCare Version: 1.05.00

FieldCare Version: 2.13.00

Communication DTM

2.09.06

Language neutral
Measurement of electrical conductivity (.mp4 format, 70,7MB)
The conductivity of a liquid can be measured using the conductive or
toroidal measuring principles. This video shows what it is about and how
these measuring principles work.

Animation

01/14

fr
Measurement of electrical conductivity (.mp4 format, 116 MB)
The conductivity of a liquid can be measured using the conductive or
toroidal measuring principles. This video shows what it is about and how
these measuring principles work.

Animation

01/14

Polish
InduMax H, SmarTec, SmarTec S
Product Code: CLD134-, CLD18-, CLS54-, CLS54D-
Declaration Number: HE_00726_03.17
Manufacturer Specification: 1935/2004

Manufacturer Declaration

German , English
InduMax H, SmarTec, SmarTec S
Product Code: CLD134-, CLD18-, CLS54-, CLS54D-
Declaration Number: HE_00726_01.17
Manufacturer Specification: 1935/2004

Manufacturer Declaration

German , English
SmarTec
Product Code: CLD18-
Declaration Number: FDA_00161_01.17

FDA Declaration

German , English
SmarTec
Product Code: CLD18-
Declaration Number: EC_00369_01.16

EU Declaration

German , English , fr
ConduMax H, ConduMax W, InduMax H, InduMax P, Liquisys Conductivity, Memosens, SmarTec, SmarTec S
Product Code: CLS82D-, CLS54D-, CLS54-, CLS50D-, CLS50-, CLS30-, CLS21D-, CLS21-, CLS19-, CLS16D-, CLS16-, CLS15D-, CLS15-, CLS13-, CLS12-, CLM253-, CLM223F-, CLM223-, CLD18-, CLD134-, CLD132-
Approval Number: EAEC RU D-DE.AD.07.B.01362/19

Miscellaneous

Russian
SmarTec S, SmarTec, Sensor, Memosens, Liquisys Conductivity, Liquiline, InduMax P, InduMax H, ConduMax W, ConduMax H, Chloromax, ANALOG
Product Code: CLM253-, CLS12-, CLS13-, CLS15-, CLS15D-, CLS16-, CLS16D-, CLS19-, CLS21-, CLS21D-, CLS30-, CLS50-, CLS50D-, CLS54-, CLS54D-, CLS82D-, CYM290-, CLM223F-, CLM223-, CLD18-, CLD134-, CLD132-, CCS55D-, CCS51D-, CCS51-, CCS50D-, CCS50-, CCS241-, CCS240-, CCS142D-, CCS141-, CCS140-, CCS120D-, CCS120-
Region/Country: Russia (Declaration of Conformity)
Approval Number: EAEC RU D-DE.AD07.B.01363/19

Miscellaneous

Russian
InduMax H, Memosens, SmarTec, SmarTec S, TopHit, UniFit H
Product Code: CLD134-, CLD18-, CLS54-, CLS54D-, CLS82D-, CPA442-, CPS441-, CPS441D-, CPS471-, CPS471D-, CPS47D-, CPS77D-
Region/Country: USA
Approval Agency: 3-A Sanitary Standards

Hygienic Equipment

English
InduMax H, Memosens, SmarTec, SmarTec S, TopHit, UniFit H
Product Code: CLD134-, CLD18-, CLS54-, CLS54D-, CLS82D-, CPA442-, CPS441-, CPS441D-, CPS471-, CPS471D-, CPS47D-, CPS77D-
Region/Country: USA
Approval Agency: 3-A Sanitary Standards

Hygienic Equipment

English
InduMax H, Memosens, SmarTec, SmarTec S, TopHit, UniFit H
Product Code: CPS77D-, CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPA842-, CLS82D-, CLS54D-, CLS54-, CLD18-, CLD134-
Region/Country: USA
Approval Agency: 3-A Sanitary Standards

Hygienic Equipment

English
SmarTec
Product Code: CLD18-
Region/Country: Europe
Approval Agency: TNO

Hygienic Equipment

English
SmarTec
Product Code: CLD18-
Region/Country: Canada (CRN)
Approval Agency: CRN

Pressure Equipment

English
SmarTec, OxyMax W, OxyMax H, OrbiPac, Memosens, Liquiline M, InduMax P, InduMax H, ConduMax W, ConduMax H
Product Code: CPS96D-, CPS76D-, CPS16D-, CPF82D-, CPF82-, CPF81D-, CPF81-, COS51D-, COS22D-, CM42-, CLS82D-, CLS54D-, CLS54-, CLS52-, CLS50D-, CLS50-, CLS30-, CLS21D-, CLS21-, CLS16D-, CLS15D-, CLS15-, CLS13-, CLS12-, CLD18-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: OC.C.31.004.A NO 55929

Metrology

Russian
SmarTec
Product Code: CLD18-
Region/Country: International
Approval Agency: BV

Marine

English
SmarTec
Product Code: CLD18-
Approval Agency: CSA

Ordinary Location Product Safety

English
UniFit H, TopHit, SmarTec S, SmarTec, ProbFit H, Memosens, InduMax H, CleanFit H
Product Code: CLS54D-, CLS82D-, CPA442-, CPS441-, CPS441D-, CPS471-, CPS471D-, CLD134-, CLD18-, CLS54-
Region/Country: USA
Approval Agency: 3-A Sanitary Standards

Food Safety

English

Show more
Show less

Accessories / Spare parts

???Show as Pdf???

Filter

Order code

Specification

- Order code 71228583

  Kit CLD18 Housing upper part plastic

  Show details Show less
- Order code 71228584

  Kit CLD18 Housing upper part st. steel

  Show details Show less

Show more
Show less

Predecessor
- CLD133
- CLD633
