Capacitance
Point level detection

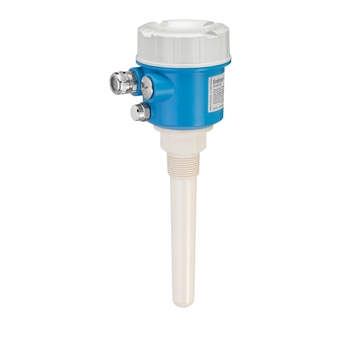

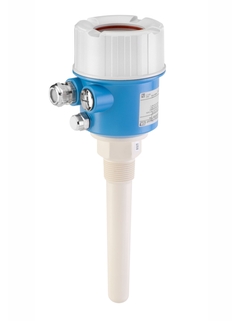

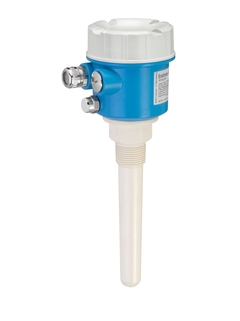

Minicap FTC260
Designed for light bulk solids

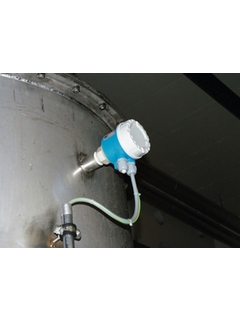

Minicap FTC260 is a simple and cost-effective rod probe for point level detection in bulk solids, particularly suited to applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g. grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
- F
- L
- E
- X
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
Specs at a glance
-
Process temperature
-40 °C ... 120°C
(-40 °F ... 248 °F) -
Process pressure absolute / max. overpressure limit
-1 ... 25 bar
(-14.5 ... 360 psi)
-
Quick selection
Individual configuration
-
Benefits
Simple mounting and commissioning without calibration
Mechanical safety, cost-efficiency and long operating life due to no wearing parts
High operational safety and reliability due to active build-up compensation
-
Field of application
For point level detection of light bulk solids, with a grain size up to max. 30mm and a dielectric constant εr ≥ 1.6.
Typical applications: Grain products, flour, milk powder, animal feed, cement, chalk or gypsum.Process connection: Threads
...
Documents / Manuals / Software
-
Technical Information
Minicap FTC260, FTC262
Point level switch with buildup compensation
No calibration necessaryTechnical Information (TI) -
Operating Instuction
Adapter for Minicap FTC 260
Short Instruction (KA)10/14German , English , Spanish , fr , Italian , Dutch -
Kurzanleitung/ Short Operating Instuction Minicap FTC 260.
Compact Point Level Switch for limit detection with active build-up
compensation
No calibration necessary Version available for dust Explosion areas.
Kompakter Grenzschalter mit integrierter aktiver Ansatzkompensation
Inbetriebnahme ohne Abgleich
Auch für staubexplosionsgefährdete Bereiche.Short Instruction (KA)08/15German , English , Spanish , fr , Italian , Dutch -
Minicap FTC260
Operating Instructions
Point level switch with buildup compensation
No calibration necessaryShort Instruction (KA)05/19German , English , Spanish , fr , Italian , Dutch -
FTC 260
FTC 260
Short Instruction (KA)03/98German , English , Spanish , fr , Italian , Dutch -
Minicap FTC260
EAC:
Ex ta/tc IIIC T105°C Da/Dc
Safety Instructions
Capacitive Level Measurement
Ex Safety Instructions (XA) -
Minicap FTC260
ATEX:
II 1/3 D Ex ta/tc IIIC T105°C Da/Dc
IECEx:
Ex ta/tc IIIC T105°C Da/Dc
Safety Instructions
Capacitive Level Measurement
Ex Safety Instructions (XA) -
Safety Instructions
Minicap FTC260
Ex tD A20/A22 IP66 T105°C
GYJ16.1421 (NEPSI)Ex Safety Instructions (XA) -
Minicap FTC260
WHG
Allgemeine bauaufsichtliche Zulassung
Z-65.13-192 (DIBt)Certificate (ZE) -
Minicap FTC260-B
ATEX
Baumusterprüfbescheinigung BVS 98.Y.8003Certificate (ZE) -
Catálogo Medición y Detección de nivel
Gama de productos para aplicaciones con líquidos y sólidos
Fields of Activities (FA)09/19Spanish -
Mesure de niveau
Aperçu des produits pour des applications dans des liquides et des
solides en vracFields of Activities (FA)03/19fr -
Level measurement
Product overview for applications in liquids and bulk solids
Fields of Activities (FA)03/17English -
Level measurement
Product overview for applications in liquids and bulk solids
Fields of Activities (FA)03/17English -
Füllstandmesstechnik
Produktübersicht für Anwendungen in Flüssigkeiten und Schüttgütern
Fields of Activities (FA)03/17German -
Catálogo soluciones esenciales
Alta calidad a precios competitivos
Competence Brochure (CP)01/17Spanish -
E-direct Produktcatalogus 2018-2019
High quality, low price
Endress+Hauser Catalogues (EC)10/18Dutch -
Catalogue Produits E-direct 2019/2020 Français
La qualité Endress+Hauser à petit prix !
Endress+Hauser Catalogues (EC)09/19fr -
E-direct Produktkatalog 2019/2020
Hohe Qualität zum kleinen Preis!
Endress+Hauser Catalogues (EC)06/20German -
Overfill prevention / WHG / Calculation Tool
Überfüllsicherung / WHG / Berechnungstool
Windows 10 - Update >> Fixed view for prints / Ausdruck
Liquiphant FTL31/33; FTL50/50H/51/51C/51H; FTL70/71; FTL80/81/85
Nivotester FTC325, FTL325N/325P; FTW375W
Minicap FTC260/262
Liquicap FMI21; FMI51/52; FTI51/52
Liquipoint FTE31/33LConfiguration SoftwareLanguage neutral -
Minicap
Product Code: FTC260-
Declaration Number: HE_00225_02.15
Manufacturer Specification: 10/2011, 1935/2004Manufacturer DeclarationEnglish -
Minicap
Product Code: FTC260-
Declaration Number: EC_00558_03.17EU DeclarationGerman , English , fr -
Minicap
Product Code: FTC260-, FTC262-
EU DeclarationGerman , English , fr -
Levelflex, Micropilot, Soliphant T, Soliphant M, Solicap S, Solicap M, Prosonic S, Prosonic M, Nivector, Minicap
Product Code: FMP57-, FMP56-, FMR57-, FMR56-, FMR67-, FTM52-, FTM51-, FTM50-, FTM21-, FTM20-, FTI77-, FTI56-, FTI55-, FTC968Z-, FTC968-, FTC262-, FTC260-, FMU95-, FMU90-, FMU44-, FMU43-, FMU42-, FMU41-, FMU40-, FDU95-, FDU93-, FDU92-, FDU91F-, FDU91-, FDU90-
Region/Country: Russia (Declaration of Conformity), Russia (TR CU)
Approval Agency: EAC
Approval Number: RU D-DE.MO10.B.05554MiscellaneousRussian -
Minicap
Product Code: FTC260-, FTC262-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TС RU D-DE.MU62.B.02534MiscellaneousRussian -
Levelflex, Micropilot, Soliphant T, Soliphant M, Solicap S, Solicap M, Prosonic S, Prosonic M, Nivector, Minicap
Product Code: FMP57-, FMP56-, FMR57-, FMR56-, FMR67-, FTM52-, FTM51-, FTM50-, FTM21-, FTM20-, FTI77-, FTI56-, FTI55-, FTC968Z-, FTC968-, FTC262-, FTC260-, FMU95-, FMU90-, FMU44-, FMU43-, FMU42-, FMU41-, FMU40-, FDU95-, FDU93-, FDU92-, FDU91F-, FDU91-, FDU90-
Region/Country: Russia (Declaration of Conformity), Russia (TR CU)
Approval Agency: EAC
Approval Number: RU D-DE.MO10.B.05551MiscellaneousRussian -
Minicap
Product Code: FTC260-
Region/Country: USA
Approval Agency: FM
Category: II,III 1 EFG
Protection: DIP/II, III/E-GExplosion ProtectionEnglish -
Minicap
Product Code: FTC260-
Region/Country: USA
Approval Agency: FM
Category: II,III/1/E,F,G/
Protection: DIPExplosion ProtectionEnglish -
Minicap
Product Code: FTC260-
Region/Country: China
Approval Agency: NEPSIExplosion ProtectionChinese -
Minicap, Nivector
Product Code: FTC260-, FTC262-, FTC968Z-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Protection: Ex t, Ex ta/tcExplosion ProtectionRussian -
Minicap
Product Code: FTC260-
Region/Country: Europe (ATEX)
Approval Agency: EXAM (DMT, BVS)
Category: II 1/3 DExplosion ProtectionGerman , English -
Minicap
Product Code: FTC260-
Region/Country: International (IECEx)
Approval Agency: EXAM (DMT, BVS)
Protection: Ex ta/tc IIIC Txxx°C Da/DcExplosion ProtectionEnglish -
Minicap
Product Code: FTC260-
Region/Country: Canada
Approval Agency: CSA
Category: II,III//E,F,G/
Protection: DIPExplosion ProtectionEnglish -
Minicap
Product Code: FTC260-
Region/Country: Europe (ATEX)
Approval Agency: EXAM (DMT, BVS)
Category: II 1/3 DExplosion ProtectionGerman , English -
Minicap
Product Code: FTC260-
Region/Country: China
Approval Agency: NEPSI
Category: zone 20,22Explosion ProtectionChinese -
Micropilot, Micropilot S, Minicap, Nivector, Prosonic M, Prosonic S, Prosonic T, Pumpenschutz, Solicap M, Solicap S, Soliphant M, Soliphant T, SYSTEM, Doppelstabsonde, Dreistabsonde, Einstabsonde, Levelflex, Liquicap M, Liquicap T, Liquiphant, Liquiphant FailSafe, Liquiphant M, Liquiphant S, Liquipoint, Liquipoint T, LIQUITREND
Product Code: FTL51C-, FTL51B-, FTL51-, FTL50H-, FTL50-, FTL41-, FTL33-, FTL31-, FTI77-, FTI56-, FTI55-, FTI52-, FTI51-, FTI26-, FTC968Z-, FTC262-, FTC260-, FMU44-, FMU43-, FTL51H-, FTL62-, FTL64-, FTL70-, FTL71-, FTL80-, FTL81-, FTL85-, FTM20-, FTM21-, FTM50-, FTM51-, FTM52-, FTW23-, FTW31-, FTW32-, FTW33-, NMR81-, NMR84-, QMW43-, FMU42-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMU41-, FMU40-, FMU30-, FMR67-, FMR62-, FMR60-, FMR57-, FMR56-, FMR540-, FMR54-, FMR532-, FMR53-, FMR52-, FMR51-, FMR50-, FMR20-, FMR10-, FMP57-, FMP56-
Approval Agency: TÜVPressure EquipmentGerman , English
Accessories / Spare parts
-
-
Nr 20 Order code 543201-0000
-
Nr 20 Order code 943201-1001
-
Nr 20 Order code 71092705
Cover F30/31/34 Alu, gasket
Material: aluminium. O-ring: EPDM. Not for Ex d/XP. Usage: FMB50/FMB51/FMB52/FMB53, FTC260/FTC262, PMC51, PMD55, PMP51/PMP55.
-
Nr 20 Order code 71092707
Cover F30/31/34 Alu, sight glass, gasket
Material: aluminium. Sight glass: mineral glass. O-ring: EPDM. Not for Ex d/XP. Usage: FMB50/FMB51/FMB52/FMB53, FTC260/FTC262, PMC51, PMD55, PMP51/PMP55.
-
Nr 20 Order code 52020429
Sealing EPDM, F30/31/34, T14/15, 5 pcs.
Consists of: 5x O-ring 75.87x2.62, EPDM, PTFE, FDA. Usage: housing F30/F31/F34, T14/T15.
-
-
-
Nr 30 Order code 52006108
-
Nr 30 Order code 52006109
-
-
-
Nr 12 Order code 543205-0000
-
-
-
Nr 50 Order code 543226-0001
-
Nr 50 Order code 543226-0011
-
-
-
Order code 943215-1001
Sleeve adapter R1-1/2 > R1, PPS
Usage: FTC260. Thread type: EN10226/ISO7. Material: PPS.
-
Order code 943215-1021
Sleeve adapter G1-1/2 > R1, PPS
Usage: FTC260. Thread type: EN10226/ISO7. Material: PPS.
-
Order code 52014047
Sealing ring G1-1/2, 48x55 FA, 5 pcs.
Process gasket DIN7603-A. Usage: process connection, FMI21, FMI51/FMI52, FTI51/FTI52, FTI55, FTW31/FTW32, FMP51/FMP57, FMR60/FMR62/FMR67, Sliding sleeve G1-1/2 316L (52003665), 316L,3.1 (52011882), FTL51, FTL71,FTL81, AlloyC4 (52003666), FTL51, FTL71.
-
Order code 943215-0042
Sleeve adapter NPT1-1/4 > NPT1, ST
Thread type: EN10226/ISO7. Material: steel zinc coated. Usage: FTC260.
-
-
