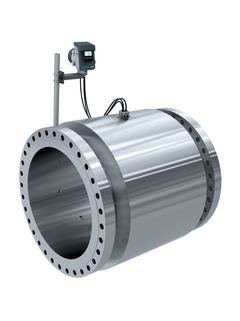

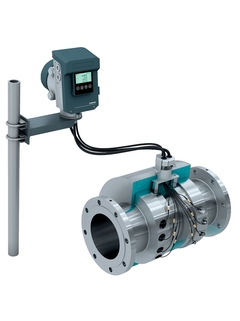

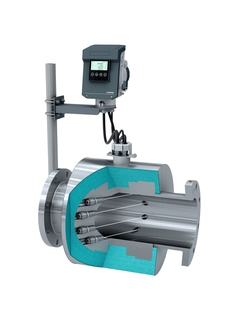

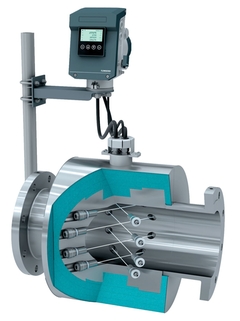

product picture of the ultrasonic flowmeter FLOWSIC900

FLOWSIC900
ultrasonic flowmeter

Custody transfer ultrasonic LNG meter

IFL900
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
product picture of the ultrasonic flowmeter FLOWSIC900
  • F
  • L
  • E
  • X
©Endress+Hauser
product picture of the ultrasonic flowmeter FLOWSIC900
  • F
  • L
  • E
  • X
©Endress+Hauser
product picture of the ultrasonic flowmeter FLOWSIC900
  • F
  • L
  • E
  • X
©Endress+Hauser
product picture of the ultrasonic flowmeter FLOWSIC900
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Measured variables

    Volume a. c., volumetric flow a. c., Fluid velocity, Speed of sound

  • Measuring Medium

    LNG (Liquefied Natural Gas)

  • Nominal pipe size

    8 ″ ... 36 ″
    DN200 ... DN900, Schedule 40S/STD acc. ASME B36.19 / B36.10, others on request

Field of application

FLOWSIC900 is the result of our many years of experience in natural gas measurement: a flowmeter specially tailored to the requirements of the LNG industry. It offers the required custody transfer accuracy for volume flow measurement and meets highest metrological standards. With FLOWSIC900 and the proven products FLOWSIC600-XT and FLOWSIC100 Flare-XT, we offer high-end measurement solutions from a single source to bring measurement performance and reliability in LNG plants to a new level.

  • Custody transfer measurement of LNG

  • On- and offshore applications

  • Liquefaction, transport and storage of LNG


Device properties:

  • Intrinsically safe and reliable ultrasonic transducers

  • Conform to OIML R117 Cl. 0.3 and API MPMS Ch. 5.8

  • Real time measurement and diagnostics

  • Full bore design without pressure drop or need for flow conditioner

  • Factory thermal pre-insulation

  • Remote Signal Processing Unit

Benefits

  • Low measurement uncertainty directly at custody transfer point reducing financial risks during LNG-transaction

  • Increased transparency during LNG transaction by dynamic & real-time measurement &
    diagnostics

  • Operational expenditure savings by reduced boil-off gas losses and efficient LNG transfer due to minimized pressure drop

  • Capital expenditure savings by simpliefied meter integration and installation due to compact design and factory pre-insulation

  • Easy and fast access during commissioning and regular checks with remote SPU
