Ultrasonic measurement
Time-of-Flight
Prosonic FMU95

Transmitter in housing for field or top hat rail mounting for up to 10 sensors FDU90/91/92/93/95

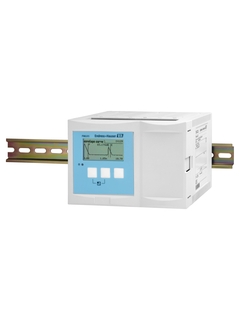

  • Prosonic FMU95 top hat rail housing ©Endress+Hauser

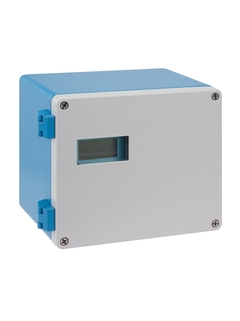

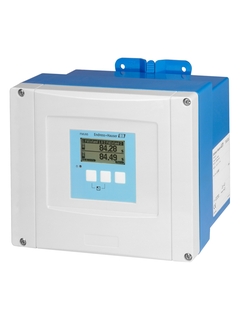

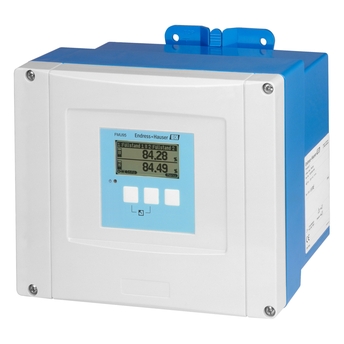

  • Prosonic FMU95 field housing ©Endress+Hauser
  • Time-of-Flight measuring principle

Prosonic FMU95 separated version with field housing or top hat rail housing for control cabinet instrumentation are suited for continuous, non-contact level measurement of fluids, pastes, sludge and powdery to coarse bulk solids.

Benefits

  • Simple, menu-guided operation with 6-line plain text display, 15 languages selectable

  • Envelope curves on the display for quick and simple diagnosis

  • Easy operation, diagnosis and measuring point documentation with the supplied "FieldCare" operating program

  • Time-of-Flight correction via integrated or external temperature sensors

  • Linearization (up to 32 points, freely configurable)

  • System integration via PROFIBUS DP with up to 20 measured values

  • Automatic detection of the sensors FDU9x

Field of application

Continuous, non-contact level measurement of fluids, pastes, sludge and powdery to coarse bulk materials with up to 5 or 10 ultrasonic sensors.

  • Measuring range up to 45m (148ft) (depending on sensor and material measured)

  • Calculation of average values or sums

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: Prosonic FMU860, Prosonic FMU861, Prosonic FMU862
