TH11
Modular RTD thermometer, US style

Best in class temperature measurement technology for general applications

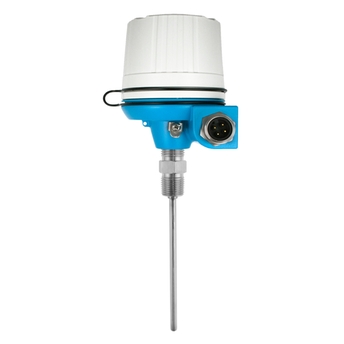

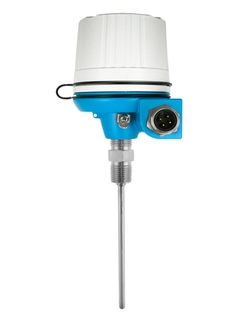

  • Product picture Pt100 thermometer TH11 US style ©Endress+Hauser

The high modular thermometer is used for several applications in almost all industries. Examples are heat exchangers, dryers, process reactors , reactor stations, etc. With different head transmitter it's a complete unit ready for use with enhanced measurement accuracy and reliability. It also enables very fast response times, due to direct contact measurement without thermowell. A variety of process connections and dimensions offer flexible application possibilities.

Benefits

  • High flexibility due to modular assembly with standard terminal heads and customized immersion length

  • One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications. Remove and install straight out of the box!

  • Improved galvanic isolation on most devices (2 kV)

  • Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor and transmitter assembly for a complete point solution.

  • All iTEMP® transmitters provide long term stability ≤ 0.05 % per year

  • Fast response time with reduced/tapered tip form

  • Head or field transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™

Field of application

The TH11 temperature sensors are RTD's designed for use in the process industry or factory automation type of environment. They are made up of a measurement probe with a RTD, insulation and sheath.

Among other applications the sensors can be used on:

  • Heat exchangers

  • Power & recovery areas

  • Carbon regeneration furnaces

  • Dryers

  • Flue Gas

  • Compressor stations

  • Process reactors

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Success stories
