Differential pressure flow

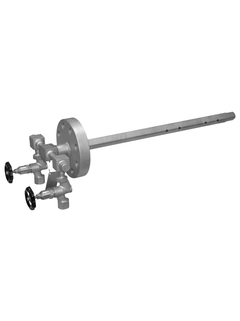

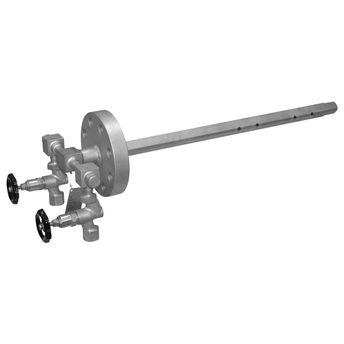

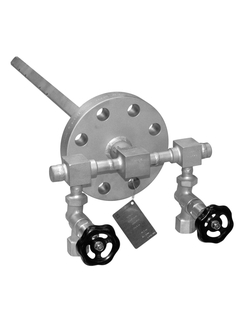

Average Pitot tube with diamond profile for dp flow measurement (integrated temperature possible)
The Deltatop DP63D is part of the differential pressure flow measurement with orifices and Deltabar differential pressure transmitter. It is an average pressure Pitot tube with diamond profile, who has the possibility to have an integrated temperature measurement.
Selectable according to the application: operational compact version or modular remote version
Optimized for minimum pressure loss and highest accuracy
Deltabar differential pressure transmitter ready adjusted
Display configured for flow rate, differential pressure or 0 to 100 %
Suited for bidirectional measurements
Cost-effective solution thanks to its robust design without moving parts
Field of application
Flow measurement of gases, steam and liquids.
Nominal diameters from 300 to 4,000mm (12 to 157")
Medium temperatures: -200 to +1,000°C (-328 to +1,832°F)
Pressure up to 420bar (6,300psi)
Compliant with PED 97/23/EC
